Jiangsu Dingxin Electric Co., Ltd.
Jiangsu Dingxin Electric Co., Ltd. is located in the Industrial Park of Haian Development Zone, a development zone in Jiangsu Province. It is a high-tech enterprise in Jiangsu Province specializing in the production of power equipment, with an annual production capacity of 50 million KVA. It mainly produces 110KV, 220KV and 500KV ultra-high voltage transformers, various dry-type transformers, oil-immersed transformers, amorphous alloy transformers, wind and solar energy storage transformers, prefabricated substations and reactors of various specifications with voltage levels of 35KV and below. , electric furnace transformer, rectifier transformer, mining transformer, split transformer, phase shift transformer and other special transformer. As China Electrical Transformers Suppliers and One-stop Transformer Solutions, companies have successively passed IS09001, ISO14001, ISO45001, ISO19011 system certification. Among the customers we cooperate with are many urban and rural power grids, as well as petrochemical, metallurgical, textile enterprises, mines, ports, residential communities, etc. We have long-term cooperation with many well-known companies, and we are also qualified suppliers for many listed companies in the electrical industry. Product sales cover the national market and are exported to Europe, the United States, Australia, Indonesia, Russia, Africa, Vietnam and other countries.
Certificate Of Honor
  • Business Licence
  • S22-M-250/10-Nx1 And Energy Efficiency Report
  • SCB18-800/10-NX1 And Energy Efficiency Report
  • SCB18-500/10-NX1 And Energy Efficiency Report
  • SCB18-2500/10-NX1 And Energy Efficiency Report
  • S13-M-1000/10KV Type Test Report

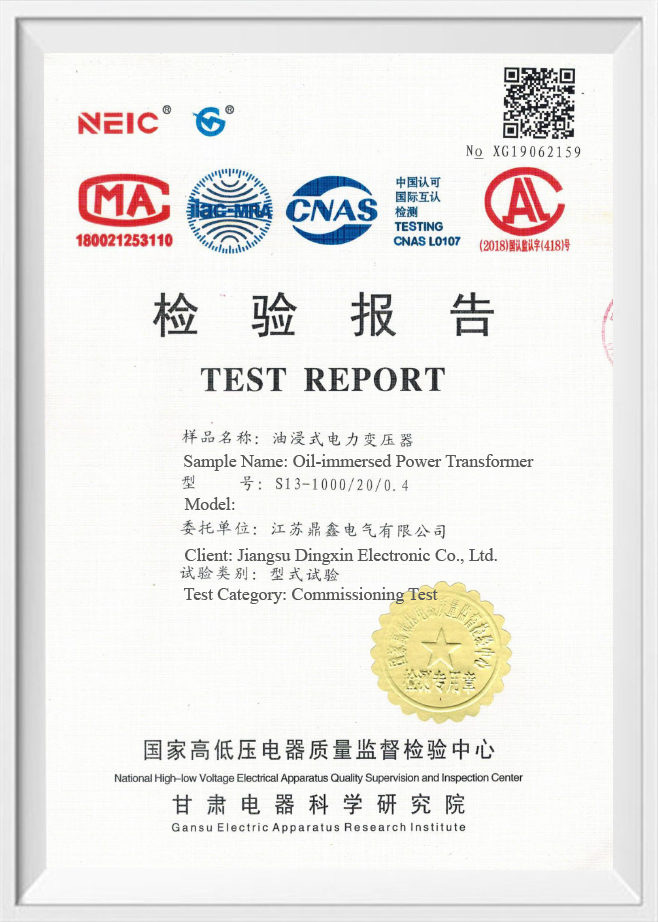

  • S13-M-1000/20KV Type Test Report
  • S13-M.RL-630/10KV Type Test Report
Industry knowledge
What are the main sources of Transformer loss? How to minimize it?
Transformers experience various types of losses during their operation, which can impact their efficiency and overall performance. The main sources of transformer losses include:
Copper Losses (I²R Losses):
Caused by the resistance of the transformer windings to the flow of current.
Proportional to the square of the current (I²) and the resistance (R) of the winding.
Iron Losses (Hysteresis and Eddy Current Losses):
Hysteresis Losses: Result from the magnetic hysteresis in the core material, where the magnetic domains resist changes in magnetization.
Eddy Current Losses: Occur due to circulating currents induced in the core by the changing magnetic field.
Stray Losses:
Leakage Flux: Some of the magnetic flux may not link both the primary and secondary windings, leading to leakage flux and additional losses.
Leakage Inductance: This contributes to reactive power losses.
Dielectric Losses:
Result from the electric field in the insulation materials causing energy dissipation in the form of heat.
More significant in high-frequency applications and high-voltage transformers.
To minimize transformer losses and improve efficiency, various strategies can be employed:
1. Selecting High-Quality Core Materials:
Choose core materials with low hysteresis and eddy current losses to reduce iron losses.
2. Optimizing Core Design:
Use core designs that minimize the path length of magnetic flux, reducing both hysteresis and eddy current losses.
Employ step-lap or other techniques to reduce eddy current losses in the core.
3. Using High-Conductivity Copper:
Select high-conductivity copper for windings to minimize copper losses.
Use larger conductors or multiple parallel conductors to reduce resistance.
4. Reducing Winding Resistance:
Minimize the resistance of transformer windings by using materials with low resistivity and optimizing winding designs.
5. Improving Core Cooling:
Implement effective cooling systems, such as oil or liquid cooling, to dissipate heat from the core and windings.
6. Optimizing Transformer Loading:
Operate transformers at optimal load levels to balance iron losses and copper losses.
Avoid overloading, as it can significantly increase losses.
7. Utilizing Amorphous Core Transformers:
Amorphous metal alloys have lower core losses compared to traditional silicon steel, making them more energy-efficient.
8. Installing Voltage Regulation Devices:
Voltage regulators or on-load tap changers can help maintain optimal voltage levels and minimize losses.
9. Implementing Energy-Efficient Transformers:
Use transformers with higher efficiency ratings, which often include design features to minimize losses.
10. Applying Advanced Monitoring and Control Systems:
Implement real-time monitoring systems to assess transformer performance and identify potential efficiency improvements.
Utilize advanced control systems to optimize transformer operation based on load and system conditions.
11. Regular Maintenance and Testing:
Perform regular maintenance, including testing insulation resistance, to ensure the transformer operates efficiently.
Address any issues promptly to prevent increased losses over time.
12. Applying Modern Insulation Materials:
Use advanced insulation materials with lower dielectric losses to reduce energy dissipation.

How to guard Transformer from overcurrent, overvoltage and other faults?
Protecting transformers from overcurrent, overvoltage, and different faults is vital to make certain their secure and dependable operation. Various protective devices and systems are hired to discover atypical conditions and initiate movements to save you harm. Here are common measures to shield Electrical Transformers:
1. Overcurrent Protection: Fuses and Circuit Breakers: Fuses and circuit breakers are hooked up inside the number one and/or secondary circuits to interrupt the current go with the flow in case of overcurrent situations. Overcurrent Relays: Overcurrent relays experience immoderate modern and journey the circuit breaker or different defensive devices to isolate the transformer.
2. Overvoltage Protection: Surge Arresters: Surge arresters (or surge protectors) are set up on the transformer terminals to divert excess voltage caused by lightning or switching surges. Tap Changers: Automatic faucet changers may consist of overvoltage safety features to prevent excessive voltage ranges throughout faucet converting.
3. Short Circuit Protection: Differential Protection: Differential relays examine the current getting into and leaving the transformer windings. A good sized difference suggests a fault. Distance Protection: Distance relays degree the impedance to the fault region, tripping the circuit breaker if the impedance is below a hard and fast threshold.
4. Temperature Protection: Thermal Relays: Temperature sensors within the transformer windings set off thermal relays if the temperature exceeds safe limits, leading to the tripping of the transformer. Buchholz Relay: Installed in oil-immersed transformers, the Buchholz relay detects gasoline generated with the aid of inner faults which include a short circuit or overheating.
5. Underfrequency and Overfrequency Protection: Frequency Relay: Monitors the device frequency and trips the transformer if the frequency deviates beyond acceptable limits.
6. Earth Fault Protection: Restricted Earth Fault (REF) Protection: Monitors the modern imbalance among the phases and the neutral, tripping the transformer if an earth fault is detected. Ground Fault Relays: Detects ground faults and initiates shielding movements to isolate the transformer.
7. Backup Protection: Backup Relays: Multiple layers of safety ensure that if one shielding device fails or malfunctions, others act as backups to protect the transformer. Backup Power Supply: Ensures that defensive devices hold to function even for the duration of a electricity outage.
8. Communication-Based Protection: Communication Protocols: Modern transformers might also have communication talents, permitting them to change information with protective relays and manage structures.
9. Transformer Monitoring Systems: Online Monitoring: Real-time monitoring structures constantly determine the transformer's circumstance, bearing in mind early detection of capacity problems. Dissolved Gas Analysis (DGA): Monitors the gases dissolved inside the transformer oil, providing insights into capability faults.
10. Isolation and Shutdown Devices: Circuit Breakers: Provide the ability to manually or automatically disconnect the transformer from the electricity system in case of a fault. Isolation Switches: Used for guide disconnection at some stage in upkeep or emergency conditions.
